SS-304 BOD Incubator GMP Model

SS-304 BOD Incubator GMP Model
4.0 Rating

₹88,500

Model Name/Number TANCO PLT-141(A)
Brand TANCO
Color SS-304
Size 405 x 405 x 405 mm to 700 x 900 x 650 mm
Chamber Volume 60 to 420 Ltr
Country of Origin Made in India

APPLICATIONS OF BOD INCUBATOR GMP MODEL

  • "TANCO" brings the ultra-high-tech Triple walled Microprocessor controlled, solid-state heating/cooling incubator (BOD Incubator) down to earth.
  • Specially designed for incubation of Biochemical Oxygen demand on water and sewage; can be used as environmental study and growth chamber by incorporating lighting and humidification system.

APPLICATIONS OF BOD INCUBATOR GMP MODEL

  • Robust construction Inner & Outer chamber complete made of Stainless Steel.
  • Fitted with durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
  • Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
  • A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
  • High grade PUF INSULATION between outer and inner chamber for minimal thermal losses.
  • Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
  • Inner chamber has ribs for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
  • Control panel having all controls and circuitry are housed at the top fitted with Temperature controller cum Indicator Microprocessor based with LED display for Set Value (SV) & Process Value (PV) to select any desired temperature provided with Volt meter on the panel to read the incoming voltage.
Model No. BOA - 2 BOA - 4 BOA - 6 BOA - 10 BOA - 12 BOA - 15
Usable Space in MM 405 x 405 x 405 610 x 450 x 410 845 x 500 x 400 870 x 570 x 560 900 x 650 x 570 700 x 900 x 650
Capacity 2 cu. ft 4 cu. ft 6 cu. ft 10 cu. ft 12 cu. ft 15 cu. ft
Approx Volume (Ltr) 60 ltrs 113 ltrsq 173 ltrs 282 ltrs 342 ltr 421 ltrs
No. of Shelves 2 2 2 2 2 2
Temperature Range 5°C above ambient to 60°C (Resolution 0.1°C)
Temp. Controller By Microprocessor Based PID Digital Temperature Indicator cum Controller.
Temp. Accuracy +0.5°C
Display LED Display for Set Value(SV) and Process Value (PV)
Relay Solid state electronic relay with protective heat sink.
Auto Tuning System System is compatible with auto tuning system
Air Circulation By forced convection system
Insulation By High density PUF insulation
Operations Nearly silent operation with ultra-low vibration
Voltage Indicator By Digital Volt Meter fitted on Panel
High Voltage Protection Through automatic voltage stabilizer (Optional)
Electric Supply 220/230V AC, 50/60Hz
Related Products
Friability Test Apparatus

₹14,400

Magnetic Stirrer With Hot Plate

₹5,100

Magnetic Stirrer With ABS Top

₹4,200

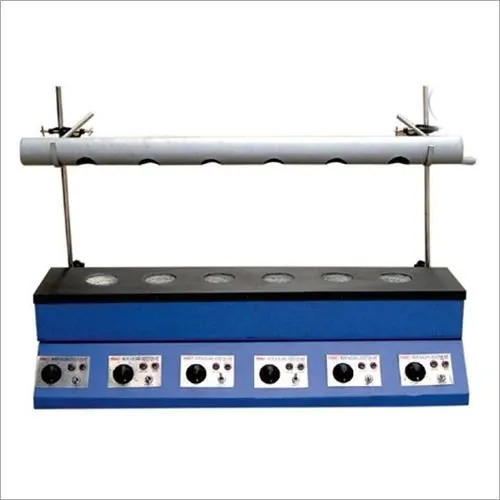

Kjeldahl Distillation Assembly
